Model |
VB-FL11-30W |
VB-FL11-50W |
VB-FL11-100W |
VB-FL11-150W |
VB-FL11-200W |
VB-FL11-250W |
VB-FL11-300W |
VB-FL11-400W |
VB-FL11-500W |
Input Voltage |
AC100-277V, 50-60Hz |
||||||||
Output Voltage |
DC45V |
||||||||
Rated Power |
30W |
50W |
100W |
150W |
200W |
250W |
300W |
400W |
500W |
Qty of LED |
75PCS*2835 |
120PCS*2835 |
240PCS*2835 |
360PCS*283 |
480PCS*2835 |
600PCS*2835 |
720PCS*2835 |
960PCS*2835 |
1200PCS*2835 |
PF |
>0.95 |
||||||||
LED Brand |
Lumileds |
||||||||
Luminous Flux |
4500lm±5% |
7500lm±5% |
15000lm±5% |
22500lm±5% |
30000lm±5% |
37500lm±5% |
45000lm±5% |
60000lm±5% |
75000lm±5% |
CRI |
Ra>70,80 |
||||||||
CCT |
3000-6500K |
||||||||
Beam Angle |
120° |
||||||||
Driver Brand |
ZH |
MW/SOSEN/ZH |
MW/SOSEN/ZH |
MW/SOSEN/ZH |
MW/SOSEN/ZH |
MW/SOSEN/ZH |
MW/SOSEN/ZH |
MW/SOSEN/ZH |
MW/SOSEN/ZH |
IK Range |
IK08 |
||||||||
IP Range |
IP66 |
||||||||
Life Span |
50000Hrs |
||||||||
Size |
217*212*38mm |
254*239*38mm |
302*314*49mm |
358*364*49mm |
386*414*51mm |
460*480*54mm |
460*480*54mm |
550*589*56mm |
550*589*56mm |
Certification |
UL/ETL/DLC/TUV/CB/ENEC/CE/SAA/FCC/RoHS/CQC |
Products
Contact Us
0755-27218606 | |
+8613682380916 | |
+8613682380916 | |
sales@vbriteled.com | |
Add: Block 8, ZGX science Technology Park, Longteng Community, Shiyan Town, Bao’an District, Shenzhen, China |
You are here:Home >> Products >> LED Flood Light
LED Flood Light

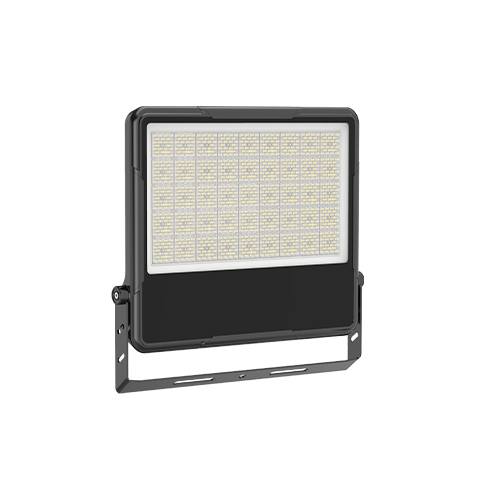

Led Flood Light VB-FL11
No screw designed VB-FL11 LED flood light adopts Lumileds LED chip with 130/150 lm/w high efficiency. Wattage from 30W to 500W optional, good heat dissipation structure with breathe valve, long span life, IP66 make it suitable for multiple commercial and industrial places.
★ 30W/50W/100W/150W/200W/250W/300W/400W/500W power range
★ Lumileds
★ 150 lm/w
★ 120°
★ 30W/50W/100W/150W/200W/250W/300W/400W/500W power range
★ Lumileds
★ 150 lm/w
★ 120°
