LED Module

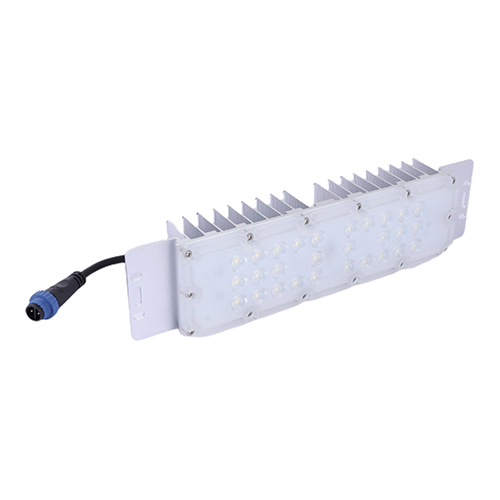

LED module VB-M07

VB-M07 LED module adopts 28pcs 5050 chips with super high efficiency and long life time. High quality aluminium heat sink and good structural design ensures good heat dissipation. Various beam angles suitable for different application place.

30-60W
5050
190lm/w,180lm/w,170lm/w,160lm/w
T2M/T3M/T2S/T3VS/T5S/30°/60°/ 90°
    Parameter of Led Module VB-M07

    Model

    VB-M07

    Power

    30W

    40W

    50W

    60W

    Driving Current

    0.63A

    0.84A

    1.05A

    1.25A

    Voltage

    DC42-48V

    LED chip

    Lumileds 5050 / Customized 5050

    CCT

    3000K / 4000K / 5000K / 5700K / 6000K

    CRI

    70 ( >80, >90 optional )

    Efficacy

    190lm/w

    180lm/w

    170lm/w

    160lm/w

    Lumen Flux

    5700lm

    7200lm

    8500lm

    9600lm

    Beam Type

    T2M / T3M / T2S / T3VS / T5S / 30° / 60° / 90°

    Lens Dimension

    236*70mm

    IP Rating

    IP66

    Working Temp.(°C)

    -40 ~50 , 20%~90% RH

    Storage Temp.(°C)

    -40 ~50 , 10%~90% RH

    Lifetime

    >50,000 hours

    Main Material

    Aluminum6063 + Optical PC

    Product Dimension

    298x70x44mm

    Carton

    425x350x455mm, 40pcs/CTN

    N.W.(KG)

    0.52KG/PCS

    G.W.(KG)

    25.5KG/CNT

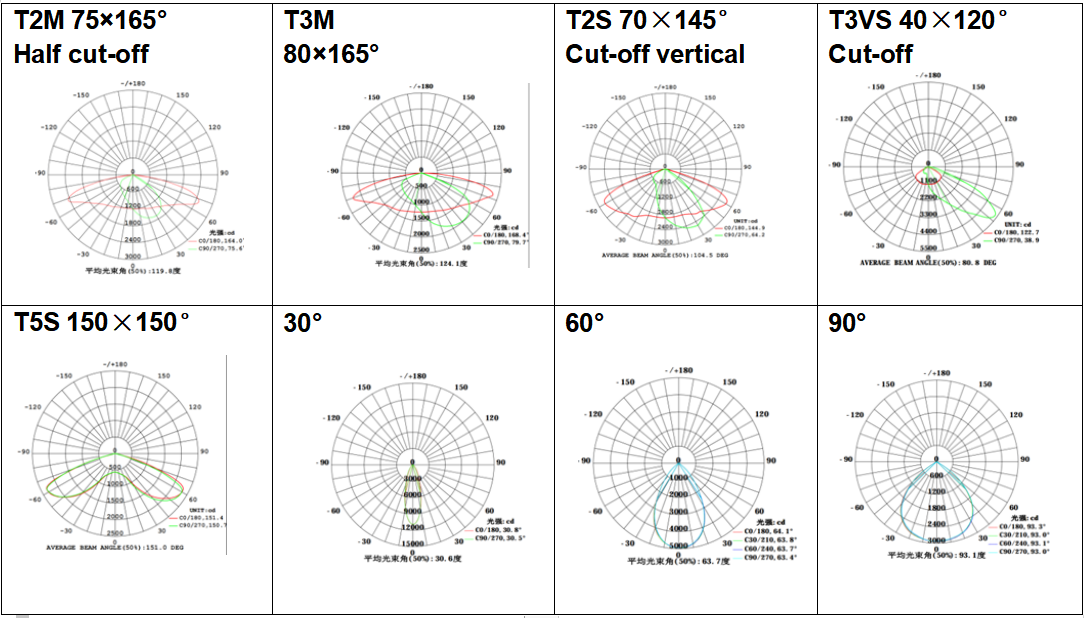

    Distribution curve of Led Module VB-M07



    Distribution curve
