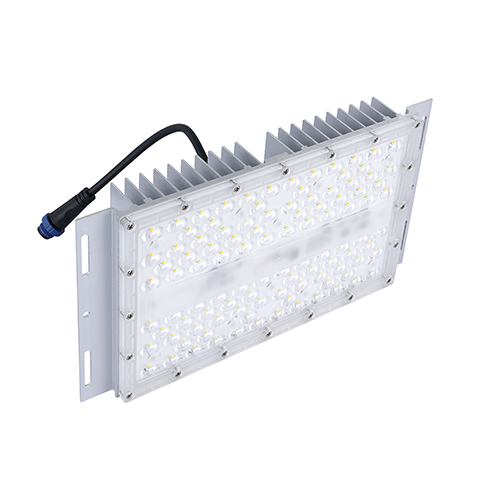

Parameter of Led Module VB-M22
Model |
VB-M22 |
|
Power |
100W |
150W |
Input voltage |
AC150-300V 50/60Hz |
|
LED chip |
SMD5050 (104pcs) |
|
CCT |
3000K/4000K/5000K/6000K |
|
CRI |
Ra>70 |
|
System Efficiency |
190lm/w |
160lm/w |
Lumen flux |
19000lm |
24000lm |
Beam angle |
150* 70° |
|
IP rating |
IP66 |
|
Ambient Temp.(°C) |
-20℃~50℃,20%~90% H.R |
|
Storage Temp.(°C) |
-40℃~85℃10%~90% H.R. |
|
Lifetime |
50,000 hours |
|
Body material |
Aluminum + Optical PC |
|
Dimension |
300*160*45mm |
300*200*45mm |
N.W. |
1.2kg |
1.4kg |

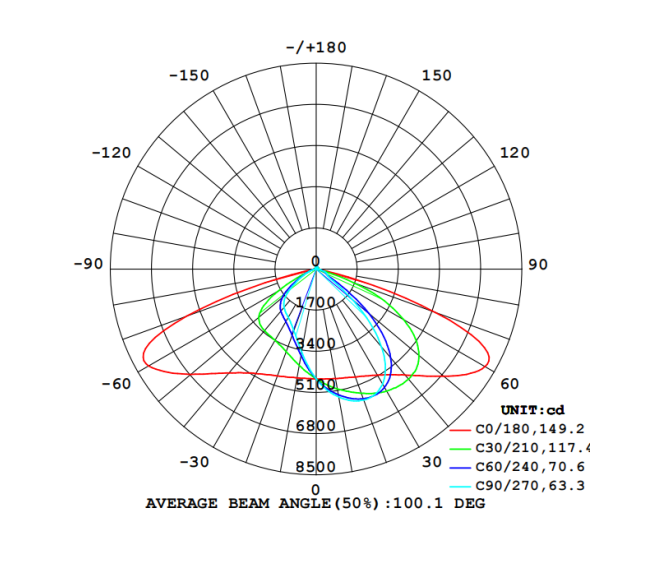

Distribution curve of Led Module VB-M22
