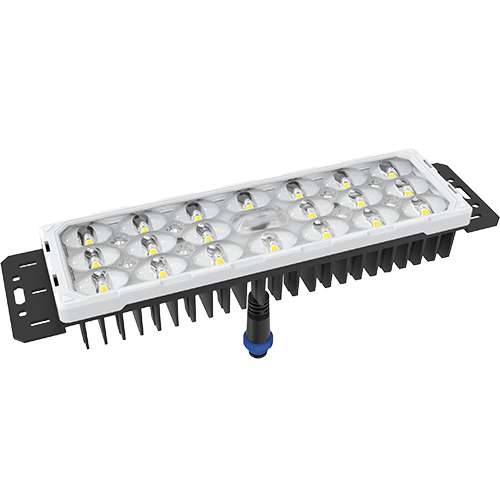

Parameter of Led Module VB-M20
| Model | VB-M20 |
| Power | 10~60W |
| Input voltage | DC50-52V |
| LED chip | SMD7070 |
| CCT | 2700K~6500K |
| CRI | Ra>70（>80，>90potional) |
| Efficiency | 170~220LM/W |
| Lumen flux (±5%) | 1700~13200LM |
| Beam angle | 150x75°/145x75° (vertical) /60°/90° |
| IP rating | IP68 |
| Ambient Temp.(°C) | -40℃~50℃ , 20%~90% H.R |
| Storage Temp.(°C) | -40℃~55℃10%~90% H.R. |
| Lifetime | >50,000 hours |
| Body material | ADC12 die-cast aluminum |
| Dimension | 300*75*44.5mm（150x75°） |
| 300*75*45mm （145x75°） | |
| 300*75*45.7mm (60°/90°) | |
| N.W.(per pcs) | 735g |
