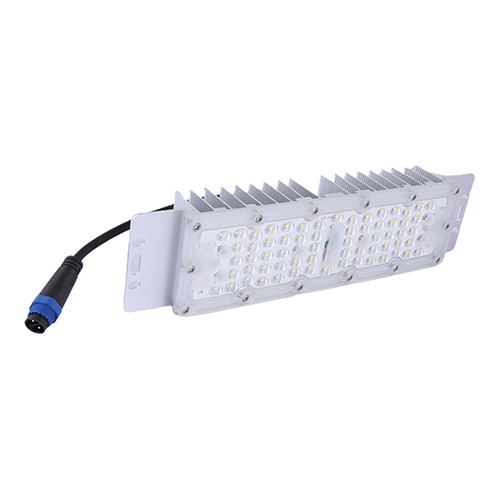

Parameter of Led Module VB-M12
Model |
VB-M12 |
|||
Power |
30W |
40W |
50W |
60W |
Driving Current |
0.63A |
0.84A |
1.05A |
1.25A |
Voltage |
DC42-48V |
|||
LED chip |
Lumileds 3030 / Customized 3030 |
|||
CCT |
3000K / 4000K / 5000K / 5700K / 6000K / 6500K |
|||
CRI |
>70 ( >80, >90 optional ) |
|||
Efficacy |
155lm/w |
145lm/w |
135lm/w |
125lm/w |
Lumen Flux |
4650lm |
5800lm |
6750lm |
7500lm |
Beam Type |
30° / 60° / 90°/ 120°/ 105x40°/120×90°/ T2 |
|||
Lens Dimension |
236*70mm |
|||
IP Rating |
IP66 |
|||
Working Temp.(°C) |
-40℃ ~50℃ , 20%~90% RH |
|||
Storage Temp.(°C) |
-40℃ ~50℃ , 10%~90% RH |
|||
Lifetime |
>50,000 hours |
|||
Main Material |
Aluminum6063 + Optical PC |
|||
Product Dimension |
300x70x44mm |
|||
Carton |
425x350x455mm, 40pcs/CTN |
|||
N.W.(KG) |
0.52KG/PCS |
|||
G.W.(KG) |
23.5KG/CNT |

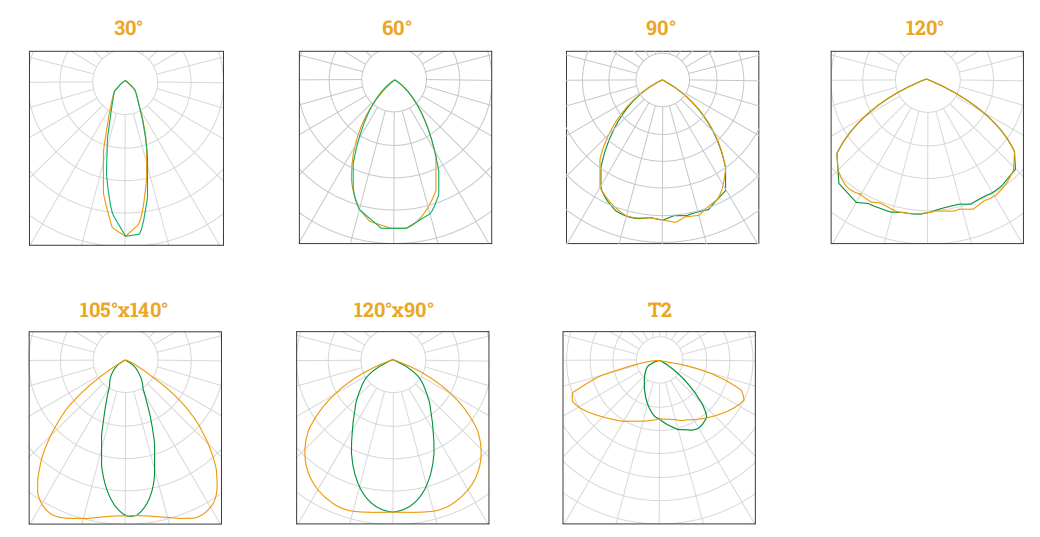

Distribution curve of Led Module VB-M12
