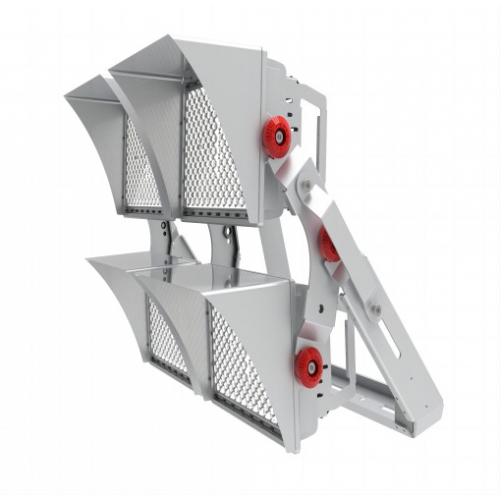

Parameter of Led Stadium Light VB-SF28
Model |
VB-SF28-500 |
VB-SF28-1000 |
VB-SF28-1500 |
VB-SF28-2000 |
Power |
500W |
1000W |
1500W |
2000W |
Voltage |
AC90-305V, 50/60 |
|||
LED chip |
Lumileds 3030/ 5050 or domestic 5050 |
|||
CCT |
3000K/4000K/5000K/5700K |
|||
Ra |
80 |
|||
Power Factor |
95% |
|||
Surge Protectin |
10KV |
|||
Beam Angle |
15° / 30° / 45° / 60° / 120° |
|||
Efficacy |
150±10%LM/W |
150±10%LM/W |
150±10%LM/W |
150±10%LM/W |
Lumen Flux |
67500±10%LM |
135000±10%LM |
202500±10%LM |
270000±10%LM |
IP Rating |
IP66 |
|||
Working Temp.(°C) |
-40℃~+55℃, 10%~90%RH. |
|||
Storage Temp.(°C) |
-40℃~85℃ |
|||
Lifetime |
>50,000 hours |
|||
N.W.(KG) |
13.5KG |
25.8KG |
40.5KG |
48.5KG |
Product Dimension |
563x413x313mm |
665x574x603mm |
665x811x885mm |
1166x573x603mm |

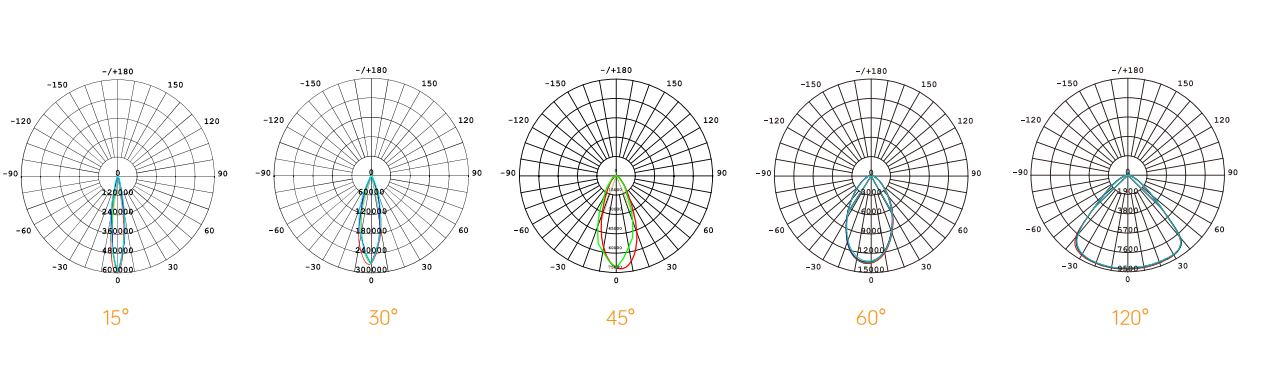

Distribution curve of Led Stadium Light VB-SF28
