Model |
VB-U15-100 |
VB-U15-150 |
VB-U15-200 |
VB-U15-240 |
Power |
100W |
150W |
200W |
240W |
Input voltage |
AC120~227V, 50/60Hz |
|||
LED chip |
SMD2835 LUMILEDS |
|||
CCT |
3000K/4000K/5000K/5700K/6500K |
|||
CRI |
Ra>70Standard,Ra>80 optional |
|||
Light Efficiency |
150lm/w, 170lm/w, 190lm/w, 210lm/w, optional |
|||
Lumen Output |
15000-21000lm |
22500-31500lm |
30000-42000lm |
36000-50400lm |
Beam angle |
60° / 90° / 120° |
|||
IP rating |
IP65 |
|||
Power factor |
0.9 |
|||
THD |
<20% |
|||
Ambient Temp.(°C) |
-20°C ~ 50°C |
|||
Storage Temp.(°C) |
-20°C ~ 60°C |
|||
N.W. |
2.5KG |
2.9KG |
3.6KG |
3.6KG |
Dimension |
Φ280*166mm |
Φ280*166mm |
Φ320*167mm |
Φ360*167mm |

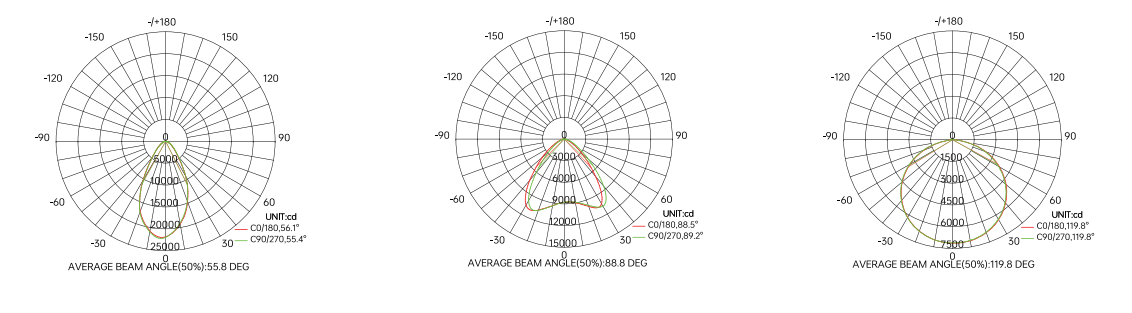

Distribution curve of High Bay Light VB-U15
