LED Street light

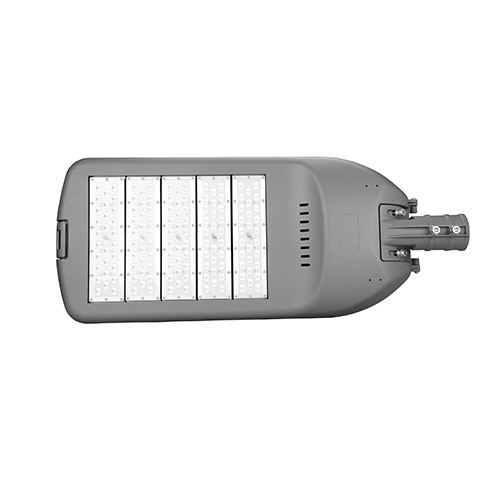

LED Street Light VB-SL20

Modular VB-SL20 LED street light adopts high efficiency 180lm/w 5050 led chips. High quality aluminium heat sink and good structural design ensures good heat dissipation.Tool-free maintenance, IK10 and IK08 maintaining consistent optimal performance.Various beam angles make the street light suitable for all kinds of street, road, pathway, expressway retrofit and garden.

50-250w power range
5050 Chips
 180lm/w
  Photocell sensor Lora controller
 150°x 80°
  Tool-free maintenance
    Parameter of Led Street Light VB-SL20

    Model

    VB-SL20-100

    VB-SL20-150

    VB-SL20-200

    VB-SL20-250

    Power

    100W

    150W

    200W

    250W

    Voltage

    100-277VAC,50/60Hz

    LED chip

    5050

    CCT

    2700K~6500K

    CRI

    >70(>80,>90 optional)

    Power Factor

    >0.95

    Efficacy

    175±5 lm/w

    Lumen Flux

    17500lm

    26250lm

    35000lm

    43750lm

    Beam Type

    150°x 80°

    Protection Grade

    IP66IK10

    Working Temp.(°C)

    -35~50

    Storage Temp.(°C)

    -35~50

    Lifetime

    >50,000 hours

    Main Material

    ADC#12(Housing)/AL6063-T5(Module)

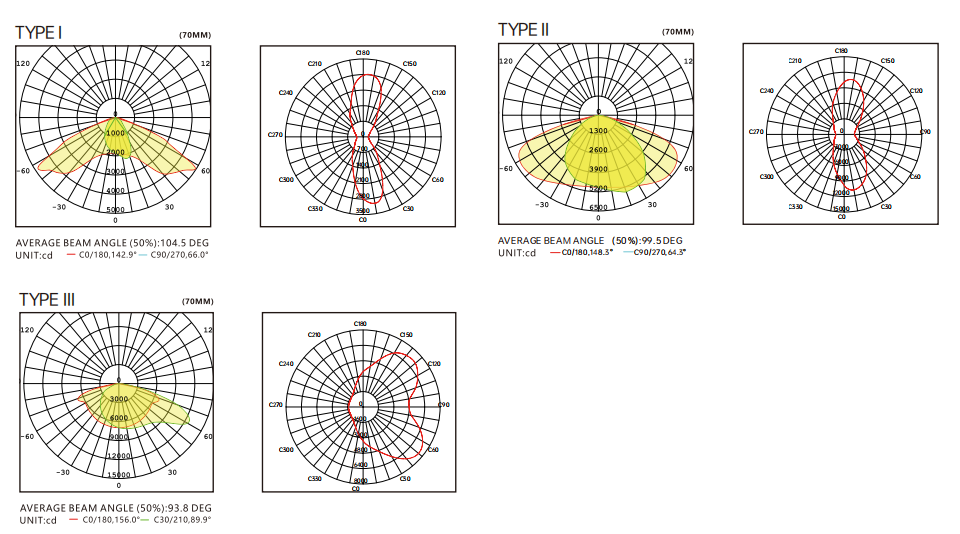

    Distribution curve of Led Street Light VB-SL20
