LED Stadium Light

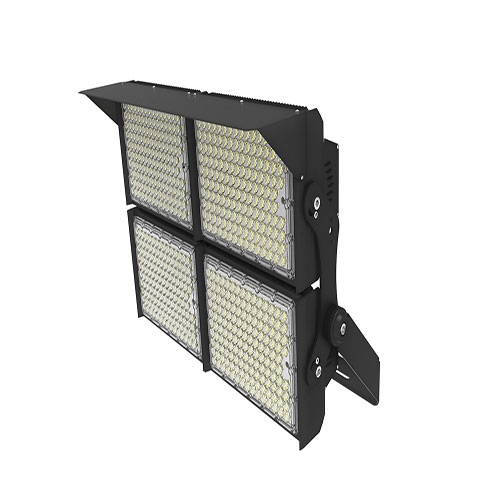

LED Stadium Light VB-SF26

New design modular high power(300-1800w) stadium/sports filed light, more beam angle(10°/ 25°/ 60° /90° / 30X45°) optional, with high efficacy of 150lm/w and IP66 rating, equipped with SPD and DMX512 for precise control, we also can provide simulation.

★ 300-1800
★ Osram 3737/5050
★ 150 / 160 lm/w
★
10°/ 25°/ 60° /90° / 30X45°
    Parameter of Led Stadium Light VB-SF26

    Model

    VB-SF26-300

    VB-SF26-600

    VB-SF26-900

    VB-SF26-1200

    VB-SF26-1500

    VB-SF26-1800

    Power

    300W

    600W

    900W

    1200W

    1500W

    1800W

    Voltage

    100-277V, 50/60Hz

    Driver brand

    MOSO / Inventronics/ Mean well

    Power factor

    >0.95

    Driver efficiency

    >0.92

    LED chip

    Osram 3737 / 5050

    CCT

    3000K/4000K/5000K/5700K/6500K

    CRI

    70 (>80,>90 optional)

    Surge Protection

    10KV Current Surge

    Dimming control

    ZigBee,DMX 512,DALI,0/1~10V

    Beam Angle

    10°/ 25°/ 60° /90° / 30X45°

    Efficacy

    150lm/w (Osram 3737 for 10°/30X35°)

    Lumen Flux

    45000 lm

    90000lm

    135000lm

    180000lm

    225000lm

    270000lm

    Efficacy

    160lm/w (5050 for 25°/ 60°/90°)

    Lumen Flux

    48000lm

    96000lm

    144000lm

    192000lm

    240000lm

    288000lm

    Inclination Angle

    -90° ~ 180°

    IP / IK

    IP66, IK10

    Working Temp.(°C)

    -40~50

    Storage Temp.(°C)

    -40~50

    Lifetime

    >50,000 hours

    Main Material

    Aluminum 6063-T5

    Package size

    430*360*205mm

    515*440*205mm

    730*440*235mm

    785*540*235mm

    785*750*255mm

    785*750*255mm


    Distribution curve of Led Stadium Light VB-SF26
