LED Street light

LED Street Light VB-SL19

VB-SL19 LED street light adopts high efficiency(160lm/w) 5050 chips. Tool-free maintenance can easy installation and maintenance. SPD, waterproof silicone rubber, multiple sensor maintaining consistent optimal performance. Various beam angles suitable for different road.


20-250w power range
★ Philips lumileds/Cree LED
★ 160lm/w
★ IP66,IK08
★ T1,T2,T3,T4,T5

    Parameter of Led Street Light VB-SL19

    Model

    VB-SL19-S

    VB-SL19-L

    Power

    20W-120W

    120W-250W

    Voltage

    120-277V,50-60Hz/220-240V,50-60Hz
    90V-305V,50-60Hz/120V-380V,50-60Hz

    LED chip

    SMD 3030/SMD5050

    CCT

    2700K,3000K,3500K,4000K,5000K,5700K,6500K

    CRI

    >70(>80 optional)

    Power Factor

    >0.95

    Efficacy

    130lm/w for 3030 led chip,150lm/w for 5050 led chip

    Lumen Flux

    2800-40000LM

    Beam Type

    T1,T2.T3,T4,T5,

    Protection Grade

    IP66,IK08

    Working Temp.(°C)

    -40℃~55℃

    Storage Temp.(°C)

    -40℃~55℃

    Lifetime

    >50,000 hours

    Main Material

    Die-casting Aluminum

    Carton

    640*305*150mm

    850*365*150mm

    Certification

    (CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS)

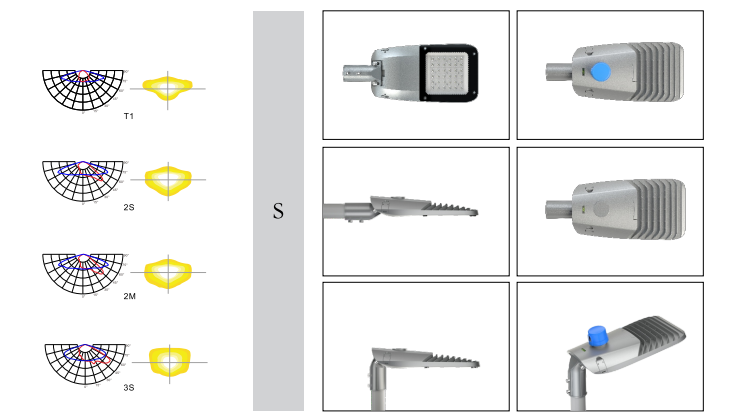

    Distribution curve of Led Street Light VB-SL19
