Model |
VB-U10-100 |
VB-U10-150 |
VB-U10-200 |
VB-U10-240 |
Power |
100W |
150W |
200W |
240W |
Input voltage |
AC100~240V, 50/60Hz |
|||
LED chip |
2835-RA70 LUMILEDS |
|||
CCT |
3000K/4000K/5000K/5700K/6500K |
|||
CRI |
Ra≥70,Ra≥80 optional |
|||
Light Efficiency |
150lm/w / 170lm/w / 190lm/w optional |
|||
Lumen Output |
15,000lm, 17,000lm, 19,000lm |
22,500lm, 25,500lm, 28,500lm |
30,000lm, 34,000lm, 38,000lm |
36,000lm, 40,800lm, 45,600lm |
Beam angle |
60° / 90° / 120° |
|||
IP rating |
IP65 |
|||
Power factor |
95% |
|||
THD |
<15% |
|||
Ambient Temp.(°C) |
-20°C ~ 50°C |
|||
Storage Temp.(°C) |
-20°C ~ 60°C |
|||
N.W. |
1.8KG |
1.8KG |
2.2KG |
2.45KG |
Dimension |
Φ255*170mm |
Φ255*170mm |
Φ300*173mm |
Φ365*173mm |
Products
Contact Us
0755-27218606 | |
+8613682380916 | |
+8613682380916 | |
sales@vbriteled.com | |
Add: Block 8, ZGX science Technology Park, Longteng Community, Shiyan Town, Bao’an District, Shenzhen, China |
You are here:Home >> Products >> LED UFO high bay light...
LED UFO high bay light

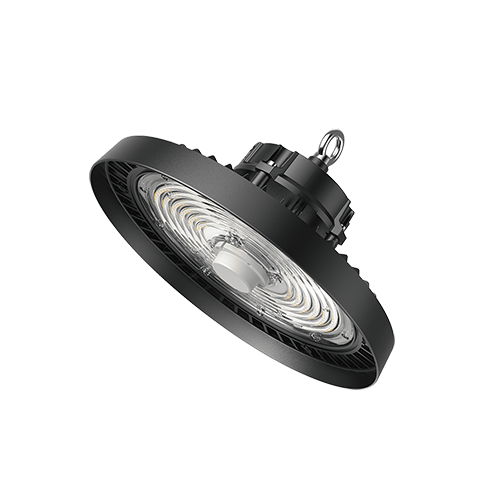

LED High Bay Light VB-U10
VB-U10 LED High Bay Light with high-efficiency 2835(150-190lm/w) chips. It adopts SMD2835 chips with high efficiency(150lm/w-190lm/w). Wattage from 100W to 240W optional. Various beam angles suitable for factories, warehouses. Multiple accessories optional can match different installation way.
★ 2835
★ 150lm/w,170lm/w,190lm/w, optional
★ 60°/90°/120°
