Model

VB-SL10-60

VB-S10-120

VB-S10-180

Power

60W

120W

180W

Voltage

100-277VAC,50/60Hz

LED chip

Philips 3030

CCT

2700K~6500K

CRI

>70(>80,>90 optional)

Power Factor

>0.95

Efficacy

140lm/w

140lm/w

140lm/w

Lumen Flux

8400lm

16800lm

25200lm

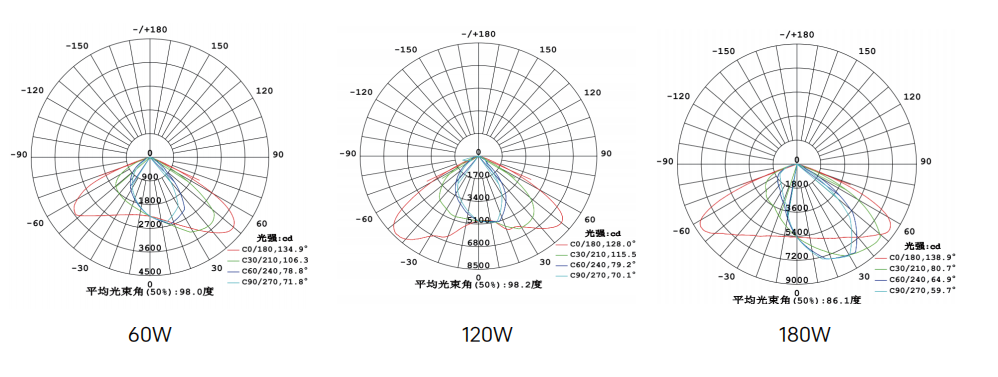

Beam Type

80*150°

Protection Grade

IP66，IK10

Working Temp.(°C)

-35℃~50℃

Storage Temp.(°C)

-35℃~50℃

Lifetime

>50,000 hours

Main Material

Die-casti ng A l u mi n u m

Dimension

418*178*80mm

490*209*80mm

570*240*80mm

Carton

545*445*405mm

545*520*260mm

610*520*280mm

Certification

(CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS)
