LED Stadium Light

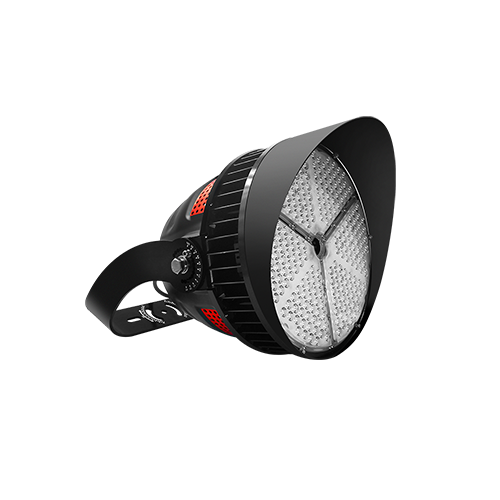

LED Stadium Light VB-SF23

VB-SF23 LED stadium light adopts customized 5050 LED chips with high efficacy(150lm/w) and IP66 ratingmore beam angle(10°/15°/25°/30°/40°/80°) optional, equipped with SPD and DMX512 for precise control.

300W/500W/1000W/1250W
5050
133lm/w,132m/w,130lm/w,126lm/w
10°/15°/25°/30°/40°/80°
    Parameter of Led Stadium Light VB-SF23

    Model

    VB-SF23-300

    VB-SF23-500

    VB-SF23-1000

    VB-SF23-1250

    Power

    300W

    500W

    1000W

    1250W

    Voltage

    100-277AC / 200-480AC

    LED chip

    Lumileds 5050 /OSRAM/CREE/Customized 5050

    CCT

    3000K/4000K/5000K/5700K/6500K

    CRI

    >70(>80,>90 optional)

    Power Factor

    >0.93

    Surge Protectin

    20KV Current Surge

    Dimming control

    0- 10V/DMX/DALI

    Efficacy

    133lm/w

    132m/w

    130lm/w

    126m/w

    Lumen Flux

    39750 Lm

    66000 Lm

    130000 Lm

    157560 Lm

    Beam Type

    10° / 30°

    10° / 30°

    10°/ 15°/25°/40°/80°

    10°/ 15°/25°/40°/80°

    EPA

    1.32 ft2

    1.32 ft2

    1.98 ft2

    1.98 ft2

    IP Rating

    IP66

    Working Temp.(°C)

    -40~50

    Storage Temp.(°C)

    -40~50

    Lifetime

    >50,000 hours

    N.W.(KG)

    13.6KG

    13.6KG

    27.2KG

    27.2KG

    Product Dimension

    Φ381*391 mm

    Φ381*391 mm

    Φ478*508 mm

    Φ478*508 mm
