LED Street light

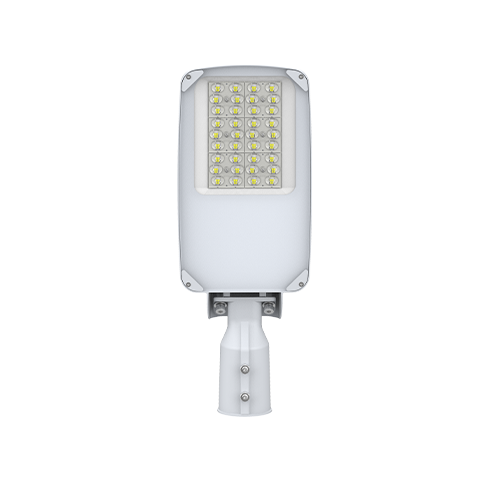

LED Street Light VB-SL12

VB-SL12 LED street light adopts high-power LED chip (5050/3030) light source, with adjust bracket. Wattage from 50W to 200W optional. Various beam angles suitable for different road.


50W/100W/150W/200W
SMD 3030/5050
130lm/w for 3030; 150lm/w for 5050
T2,T3,T4
    Parameter of Led Street Light VB-SL12

    Model

    VB-SL12-50

    VB-S12-100

    VB-S12-150

    VB-S12-200

    Power

    50W

    100W

    150W

    200W

    Voltage

    100-277VAC,50/60Hz

    LED chip

    SMD 3030 / 5050

    CCT

    2700K~6500K

    CRI

    >70(>80,>90 optional)

    Power Factor

    >0.95

    Efficacy

    130lm/w for 3030; 150lm/w for 5050

    Driver Brand

    Meanwell / Moso/ Inventronics

    Beam Type

    T2, T3, T4

    Protection Grade

    IP66IK08

    Working Temp.(°C)

    -35~50


    Storage Temp.(°C)

    -35~50

    Lifetime

    >50,000 hours

    Main Material

    Die-cast aluminum

    Certification

    (CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS)

    Dimension

    420*235*160mm

    465*285*165mm

    520*315*170mm

    555*355*170mm

    N.W.

    1.9kg

    2.9KG

    3.8KG

    4.7KG

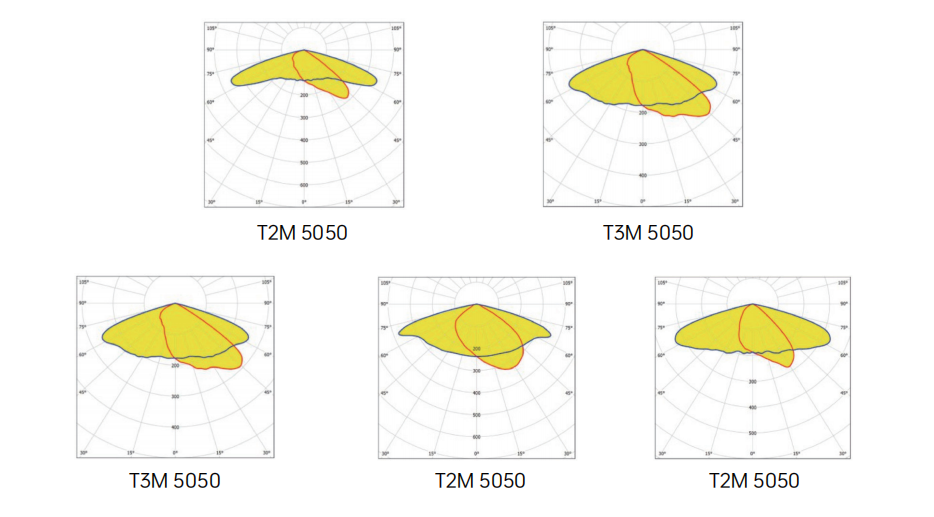

    Distribution curve of Led Street Light VB-SL12
