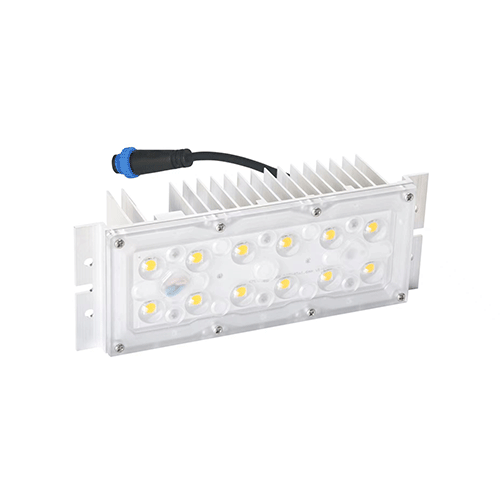

Parameter of Led Module VB-M23
Model |
VB-M23 |
|||
Power |
12W |
20W |
30W |
40W |
Driving Current |
0.27A |
0.45A |
0.68A |
0.91A |
Voltage |
DC 44V-48V |
|||
LED Chip |
5050 LED (LED Qty:12pcs) |
|||
CCT |
3000K / 4000K / 5000K / 5700K / 6000K |
|||
CRI |
>70(>80,>90 optional) |
|||
Efficacy |
190lm/w |
180lm/w |
170lm/w |
160lm/w |
Lumen Flux |
5700lm |
3600lm |
5100lm |
6400lm |
Beam Type |
II,III,IV,V/30°/60°/90°/80x40° |
|||
Connector Size |
M15 |
|||
IP Rating |
IP66 |
|||
Working Temp.(°C) |
-40℃ ~50℃ , 20%~90% RH |
|||
Storage Temp.(°C) |
-40℃ ~50℃ , 10%~90% RH |
|||
Lifetime |
>50,000 hours |
|||
Main Material |
body: Aluminum AL6063-T5, Lens: PC |
|||
Product Dimension |
200x72x55mm |
|||
Wire Length |
200mm/300mm optional |
|||
N.W.(KG) |
0.43KG/PCS |
|||
Packaging |
40PCS/CTN: 430x410x190mm |
