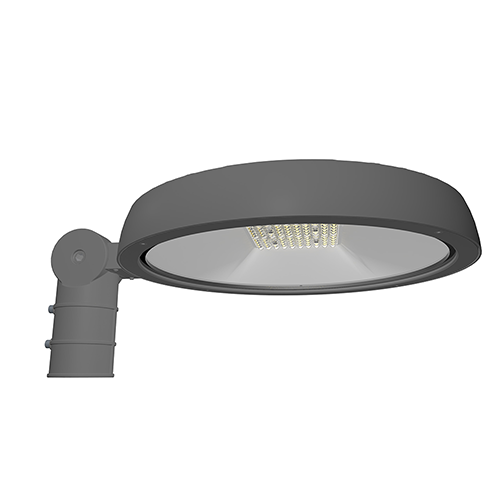

Parameter of Led Street Light VB-G05
Model |
VB-G05-40 |
VB-G05-70 |
VB-G05-100 |
Power |
40W |
70W |
100W |
Voltage |
100-277V 50/60Hz |
||
LED chip |
Lumileds 3030 |
||
CCT |
3000K/4000K/5000K/6500K |
||
CRI |
>80 |
||
Efficacy |
130LM/W |
130LM/W |
130LM/W |
Lumen Flux |
95000LM |
152000LM |
180000LM |
Beam Type |
T2-M,T3-S, T3-M, T4-M, T5-M, 110° |
||
Available Options |
Daylight Sensor,Motion sensor,Smart control |
||
IP Rating |
IP66 |
||
Color |
Grey, Black |
||
Lifetime |
>50,000 hours |
||
Main Material |
Die-casting Aluminum |
||
Working Temp.(°C) |
-40℃~50℃,20%~90% RH |
||
Storage Temp.(°C) |
-40℃~50℃, 10%~90% RH |
||
Dimensions |
Φ320*70mm |
Φ380*70mm |
Φ380*70mm |

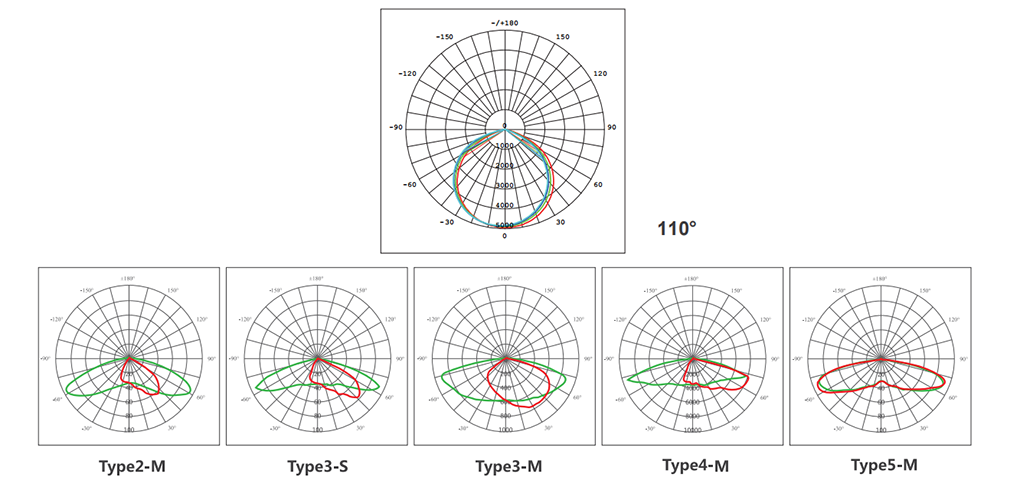

Distribution curve of Led Street Light VB-G05
