LED Street light

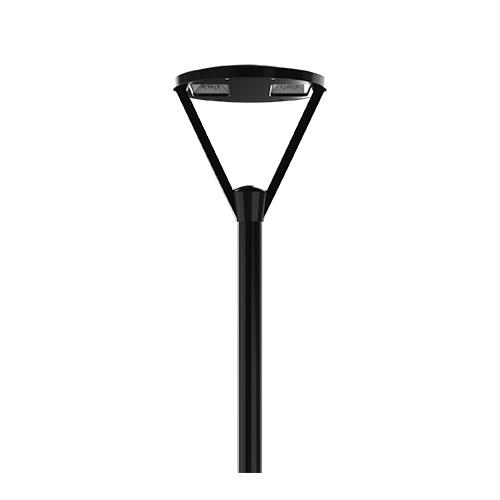

LED Street Light VB-G08

VB-G08 LED street light adopts 3030 chip with 130-160lm/w. Multiple arm and sensor optional. Various beam angles suitable for all kinds of road.



 40W/70W/100W
 3030
 130lm/w
 T2, T3, T4, T5
    Parameter of Led Street Light VB-G08

    Model

    VB-G08-40

    VB-G08-70

    VB-G08-100

    Power

    40W

    70W

    100W

    Voltage

    100-277V, 50/60Hz

    LED chip

    Lumileds 3030

    CCT

    Standard: 5000K, Optional: 3000K/4000K/5000K/6500K

    CRI

    >80

    Efficacy

    130LM/W

    130LM/W

    130LM/W

    Lumen Flux

    5200lm

    9100lm

    13000lmLM

    Beam Type

    T2, T3, T4, T5

    Available Options

    Daylight Sensor, Motion sensor, Smart control

    IP Rating

    IP66

    Arms

    Single arm / Double arm / Middle arm

    Lifetime

    >50,000 hours

    Main Material

    Die-casting Aluminum

    Working Temp.(°C)

    -40℃~50℃,20%~90% RH

    Storage Temp.(°C)

    -40℃~50℃,  10%~90% RH

    Weight

    6.25KG

    6.65KG

    6.85KG

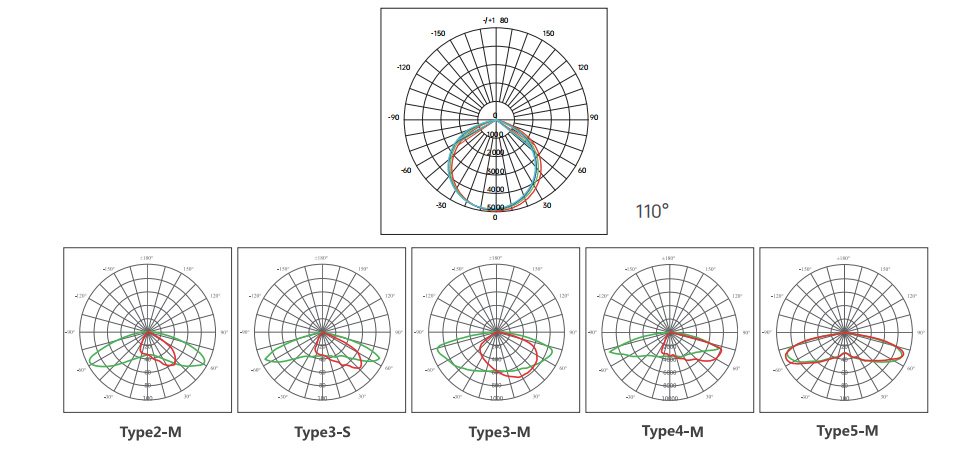

    Distribution curve of Led Street Light VB-G08
