Model |
VB-U12-100 |
VB-U12-150 |
VB-U12-200 |
VB-U12-240 |
VB-U12-300 |
Power |
60/100W |
150W |
200W |
240W |
300W |
Input voltage |
AC120~227V, 50/60Hz |
||||
LED chip |
SMD2835 LUMILEDS |
||||
CCT |
3000K/4000K/5000K/5700K/6500K |
||||
CRI |
Ra>70Standard,Ra>80 optional |
||||
Light Efficiency |
150lm/w, 170lm/w, 190lm/w, 210lm/w, optional |
||||
Lumen Output |
15000-21000lm |
22500-31500lm |
30000-42000lm |
36000-50400lm |
45000-63000m |
Beam angle |
60° / 90° / 120° |
||||
IP rating |
IP65 |
||||
Power factor |
0.9 |
||||
THD |
<20% |
||||
Ambient Temp.(°C) |
-20°C ~ 50°C |
||||
Storage Temp.(°C) |
-20°C ~ 60°C |
||||
N.W. |
2.0KG |
2.6KG |
3.0KG |
4.9KG |
5.0KG |
Dimension |
Φ273*161mm |
Φ308*166mm |
Φ349*166mm |
Φ400*178mm |
Φ400*193mm |
Products
Contact Us
0755-27218606 | |
+8613682380916 | |
+8613682380916 | |
sales@vbriteled.com | |
Add: Block 8, ZGX science Technology Park, Longteng Community, Shiyan Town, Bao’an District, Shenzhen, China |
You are here:Home >> Products >> LED UFO high bay light...
LED UFO high bay light

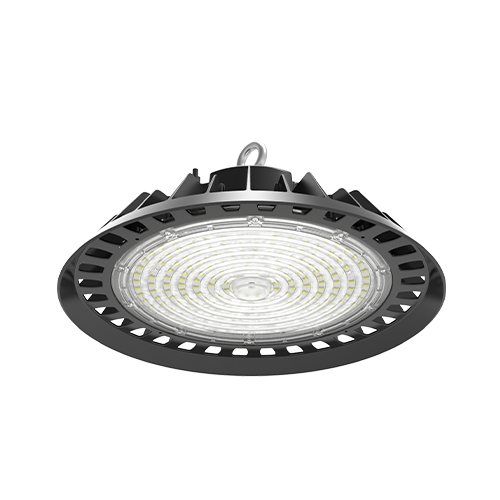

LED High Bay Light VB-U12
VB-U12 LED high bay light with diamond appearance. It adopts SMD2835 chips with high efficiency(150lm/w-210lm/w). Wattage from 60W to 300W optional. Various beam angles suitable for factories, warehouses. Multiple accessories optional can match different installation way.
★ SMD2835
★ 150lm/w,176lm/w,190lm/w,210lm/w, optional
★ 60°/90°/120°
