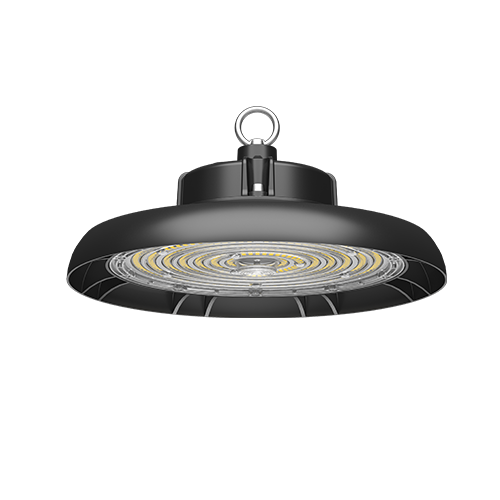

LED UFO high bay light

LED High Bay Light VB-U8

VB-U10 LED High Bay Light with high-efficiency 2835(150-190lm/w) chips. It adopts SMD2835 chips with high efficiency(150lm/w-190lm/w). Wattage from 100W to 240W optional. Various beam angles suitable for factories, warehouses. Multiple accessories optional can match different installation way.

100W/150W/200W/240W power range
★ Osram/Lumileds
150lm/w,170lm/w,190lm/w optional
60°/90°/120°
    Parameter of High Bay Light VB-U8

    Model

    VB-U8-100

    VB-U8-100

    VB-U8-200

    VB-U8-240

    Power

    100W

    150W

    200W

    240W

    Input voltage

    AC100-277V

    LED chip

    OSRAM/LUMILEDS

    CCT

    3000K/4000K/5000K/5700K

    CRI

    Ra>80

    System efficiency

    150lm/w / 170lm/w / 190lm/w optional

    Beam angle

    60° / 90° / 120°

    IP rating

    IP65

    Power factor

    >0.95

    THD

    <20%

    Ambient Temp.(°C)

    -20°C ~ 50°C

    Storage Temp.(°C)

    -20°C ~ 60°C

    N.W.

    1.8KG

    2.2KG

    2.7KG

    3.1KG

    Dimension

    Φ236*101mm

    Φ286*106mm

    Φ336*115mm

    Φ336*115mm

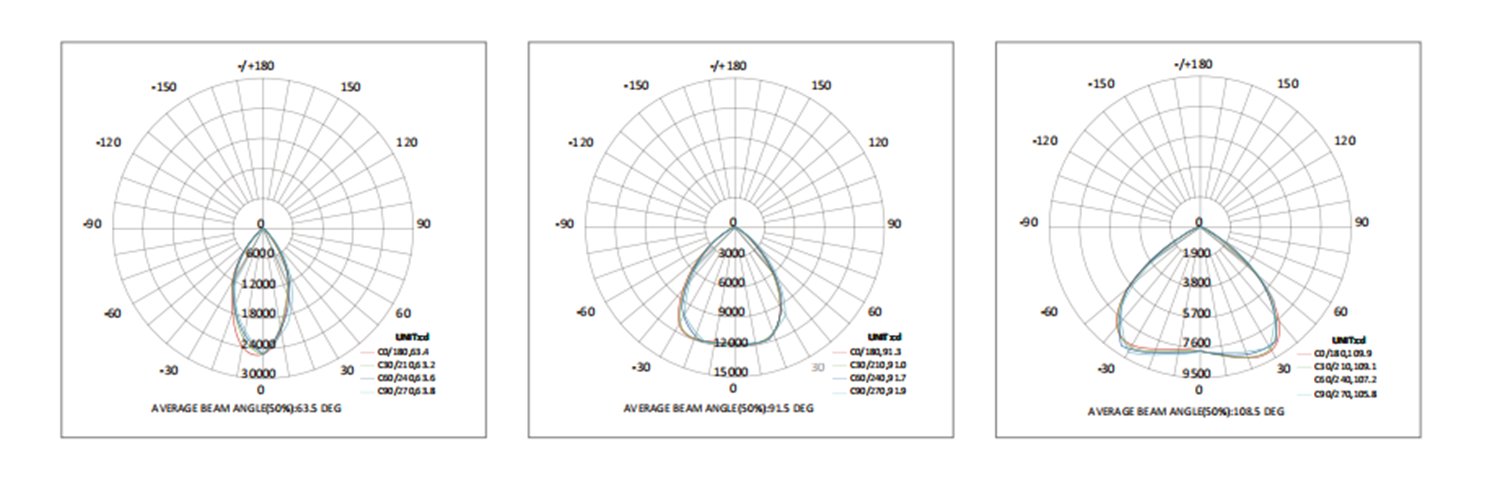

    Distribution curve of High Bay Light
     VB-U8
