LED UFO high bay light

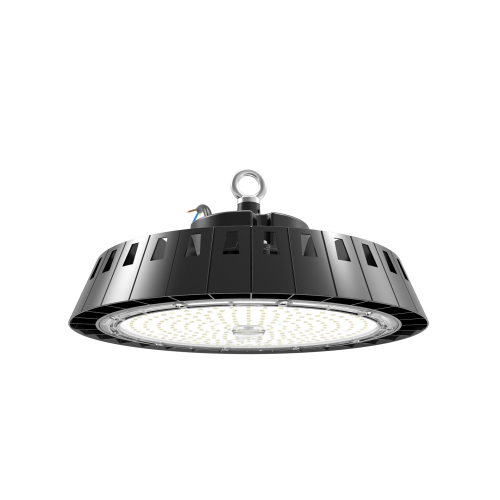

LED High Bay Light VB-U16

VB-U16 LED high bay light with diamond appearance. It adopts SMD2835 chips with high efficiency(150lm/w-190lm/w). Wattage from 100W to 200W optional. Various beam angles suitable for factories, warehouses. Multiple accessories optional can match different installation way.


 100W/150W/200W
 SMD2835
 150lm/w 170lm/w, 190lm/w
 60°/90°/120°
    Parameter of High Bay Light VB-U16

    Model

    VB-U16-100

    VB-U16-150

    VB-U16-200

    Power

    100W

    150W

    200W

    Voltage

    120-277V, 50/60Hz

    LED chip

    SMD2835

    CCT

    3000K / 4000K / 5000K / 5700K / 6500K

    CRI

    CRI>70 standard, CRI>80 optional

    Power Factor

    0.9

    Standard Efficacy

    170LM/W

    170LM/W

    170LM/W

    Standard Lumens

    17,000LM

    25,500LM

    34,000LM

    Beam Type

    60° / 90° / 120°

    Protection Grade

    IP65,IK09

    Working Temp.(°C)

    -35℃~50℃

    Storage Temp.(°C)

    -35℃~50℃

    Lifetime

    >50,000 hours

    Main Material

    Aluminum, RAL 9017 black

    Net Weight

    1.5kg

    2.0kg

    2.0kg

    Package Szie

    L280*W280*H180mm

    L310*W310*H180mm

    L370*W370*H185mm

    Certification

    (CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS)

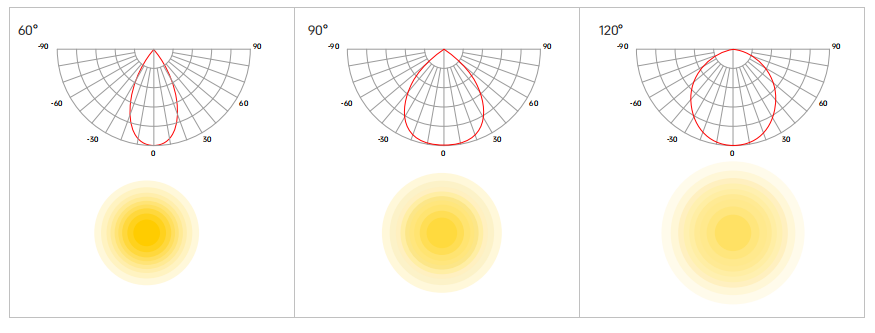

    Distribution curve of High Bay Light VB-U16
